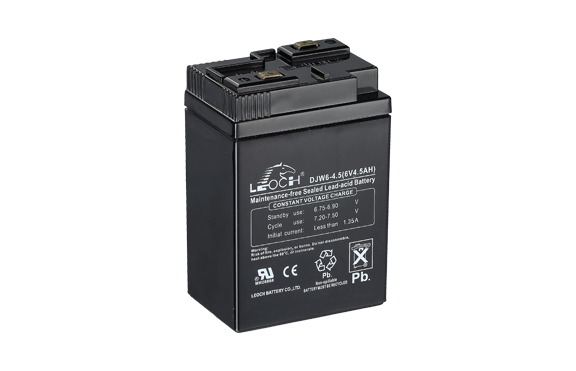

理士AGM系列閥控式密封鉛酸蓄電池廣泛使用在通信系統、電力系統、應急燈照明系統、自動化控制系統、消防和安全警報系統、太陽能、風能系統、計算機備用電源、便攜式儀器、儀表、醫療系統設備、電動車、電動工具等。
產品特性
|
1. 壽命長。 |
2. 自放電率極低。 |
|
3. 容量充足。 |
4. 使用溫度范圍寬。 |
|
5. 密封性能好。 |
6. 導電性好。 |
|
7. 充電接受能力強。 |
8. 安全可靠的防爆排氣系統。 |
應用領域
|
1. 多用途的 |
2. 不間斷電源 |
3. 電子能源系統 |
|
4. 緊急備用電源 |
5. 緊急燈 |
6. 鐵路信號 |
|
7. 航空信號 |
8. 安防系統 |
9. 電子器械與裝備 |
|
10.通話系統電源 |
11.直流電源 |
12.自動控制系統 |

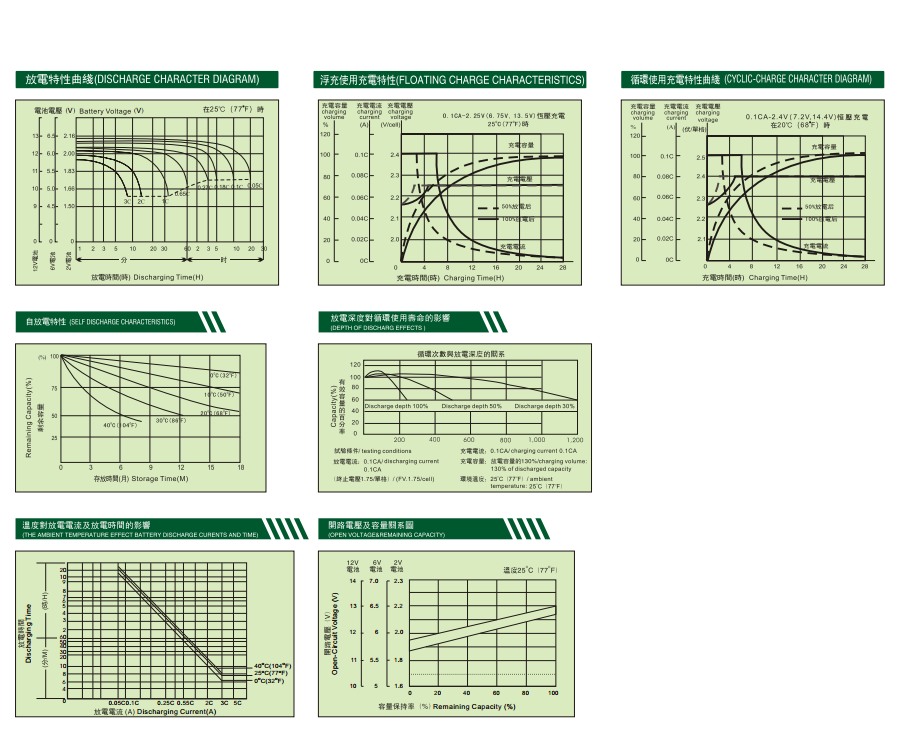

曲線圖片
產品規格
| 電池型號 | 額定電壓(V) | C20/Ah | C10/Ah | 外形尺寸 | 端子形式 | |||
| 長/L | 寬/B | 高/H | 總高/TH | |||||
| DJW6-1.2 | 6 | 1.2 | 1.1 | 97 | 24 | 51.5 | 57.5 | T1 |
| DJW6-2.0 | 6 | 1.8 | 1.7 | 43 | 37 | 76 | 76 | / |
| DJW6-2.8 | 6 | 2.8 | 2.6 | 66 | 33 | 97 | 103 | T1 |
| DJW6-3.0 | 6 | 3.0 | 2.8 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-3.2 | 6 | 3.2 | 3.0 | 134 | 34 | 60 | 66 | T1 |
| DJW6-4.0 | 6 | 4.0 | 3.7 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-4.5 | 6 | 4.5 | 4.2 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-5.0 | 6 | 5.0 | 4.7 | 169.5 | 34.5 | 70 | 74 | T1 |
| DJW6-5.0T | 6 | 5.0 | 4.7 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-5.5 | 6 | 5.5 | 5.1 | 70 | 47 | 100 | 106 | T1/T2 |
| DJW6-7.0 | 6 | 7.0 | 6.5 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-7.2 | 6 | 7.2 | 6.7 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-7.5 | 6 | 7.5 | 7.0 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-8.0 | 6 | 8.0 | 7.4 | 150 | 34 | 94 | 100 | T1/T2 |
| DJW6-8.5 | 6 | 8.5 | 7.9 | 98 | 56 | 118 | 119.5 | T1/T2 |
| DJW6-10 | 6 | 10.0 | 9.3 | 151 | 50.5 | 94 | 100 | T1/T2 |
| DJW6-12 | 6 | 12.0 | 11.2 | 151 | 50.5 | 94 | 100 | T1/T2 |
| DJW6-20 | 6 | 20.0 | 18.6 | 157 | 83 | 125 | 125 | T3-A |
| DJW6-36 | 6 | 36.0 |
|
161 | 87 | 163 | 175 | T3-A |
| DJW12-0.8 | 12 | 0.8 | 0.75 | 96 | 25 | 62 | 62 | / |
| DJW12-1.2 | 12 | 1.2 | 1.1 | 97 | 43 | 52 | 58 | T1 |
| DJW12-1.9 | 12 | 1.9 | 1.8 | 178 | 35 | 60 | 66 | T1 |
| DJW12-2.2 | 12 | 2.2 | 2.05 | 70.5 | 47.5 | 97 | 103 | T1 |
| DJW12-2.3 | 12 | 2.3 | 2.1 | 178 | 35 | 60 | 66 | T1 |
| DJW12-2.9 | 12 | 2.9 | 2.7 | 79 | 56 | 99 | 105 | T1 |
| DJW12-3.5 | 12 | 3.5 |
|
134 | 67 | 60.5 | 66.5 | T1 |
| DJW12-4.0 | 12 | 4.0 | 3.7 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-4.5 | 12 | 4.5 | 4.2 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.0 | 12 | 5.0 | 4.7 | 151 | 53 | 93 | 99 | T1/T2 |
| DJW12-5.0T | 12 | 5.0 | 4.7 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.4 | 12 | 5.4 | 5.0 | 90 | 70 | 101 | 107 | T1/T2 |
| DJW12-5.5 | 12 | 5.5 | 5.1 | 151 | 51 | 93 | 99 | T1/T2 |
| DJW12-6.5 | 12 | 6.5 | 6.1 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-7.0 | 12 | 7.0 | 6.5 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-7.5 | 12 | 7.5 | 7.0 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-8.0 | 12 | 8.0 | 7.5 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-8.8 | 12 | 8.8 | 8.2 | 151 | 65 | 93.5 | 99.5 | T1/T2 |
| DJW12-10 | 12 | 10 | 9.3 | 151 | 98 | 95 | 101 | T1/T2 |
| DJW12-10B | 12 | 10 | 9.3 | 151 | 65 | 111 | 117 | T1/T2 |
| DJW12-12 | 12 | 12 | 11.2 | 151 | 98 | 95 | 101 | T1/T2 |
| DJW12-15 | 12 | 15 | 14 | 181.5 | 76.5 | |||
